GeoMetric® VDMA-Pneumatikzylinder
GeoMetric® VDMA-Pneumatikzylinder
GeoMetric® VDMA-Pneumatikzylinder
GeoMetric® VDMA-Pneumatikzylinder
2006

Share:

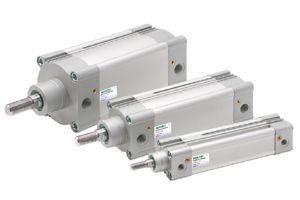

GeoMetric® VDMA-Pneumatikzylinder

Pneumatic cylinder to VDMA 24562 and DIN/ISO 6431

Numatics GmbH

The new Numatics VDMA pneumatic cylinder of the GeoMetric® series excels with its double groove, consisting of a circular and a combi groove (pat. pend.). This groove combination allows to mount most of the current T and semicircular switches. Therefore the cylinder can be interchanged with competitors’ products without any problems. The product’s modern, light-weight design is created of high quality materials, e.g. the sintered bronze-bearing and the femal hexagon adjusting screw for end-of-stroke cushioning made of brass. Its dimensions to VDMA 24562 and DIN/ISO 6431 and ISO/FDIS 15552 make it possible to interchange the GeoMetric with every other VDMA cylinder.

Client / Manufacturer

Numatics GmbH

St. Augustin, DE
Design

Numatics GmbH

St. Augustin, DE
